Triplex plate OHG allows easy top canopy replacement
Exchangeable components across models
Computer-based diagnostics not required
Yale special display with 3.5” LCD
Low center of gravity
Meets EPA emissions regulation requirements
Hand lever park brake
Simple components

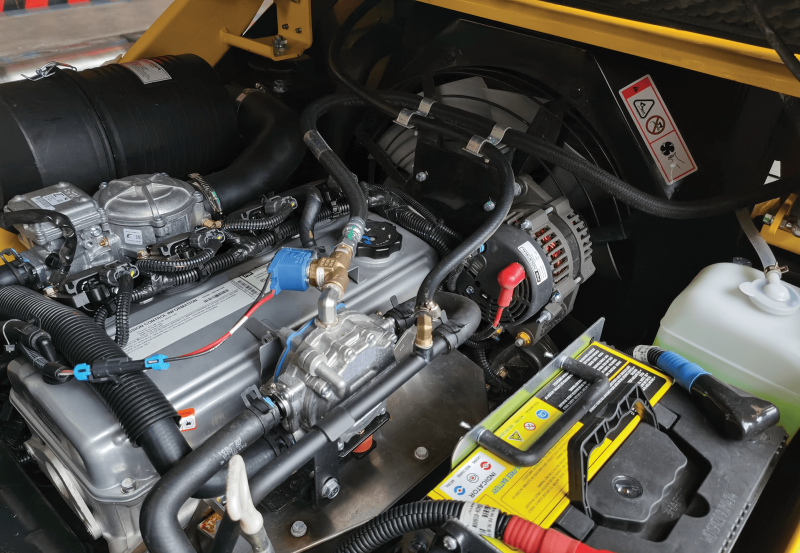

Large access area for service and repairs
High strength overhead guard

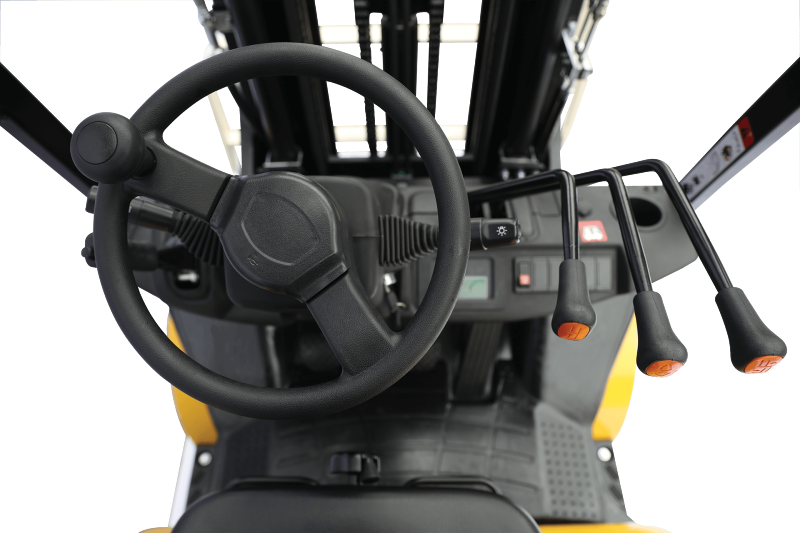

Small diameter steering wheel with adjustable steering column
Wide view mast
Operator presence system
Large foot room on floor plate
Noise isolation material
Hand parking brake lever with button greatly reduces fatigue in operation
Dual suspension drivetrain system
Capacity: |
4,000 - 7,000 lbs |
Max Height: |
216 |
Max Weight: |
7000 lbs |
Series Title: |
GLP040-070UX |
Type: |
UX Pneumatic Tire Lift Truck |
Weight: |
lbs |
Model | Model Designation | Load Capacity (lbs.) | Engine | Maximum Travel Speed (mph) | Maximum Lift Speed (ft/min) |
---|---|---|---|---|---|
GLP040UX | Internal Combustion Trucks | 4000 | PSI 2.4L LPG | 11.1 | 103 |
GLP050UX | Internal Combustion Trucks | 5000 | PSI 2.4L LPG | 11.1 | 103 |
GLP060UX | Internal Combustion Trucks | 6000 | PSI 2.4L LPG | 11.8 | 85 |
GLP070UX | Internal Combustion Trucks | 7000 | PSI 2.4L LPG | 11.8 | 71 |
