Exceptional Power Designed for the Most Demanding Jobs

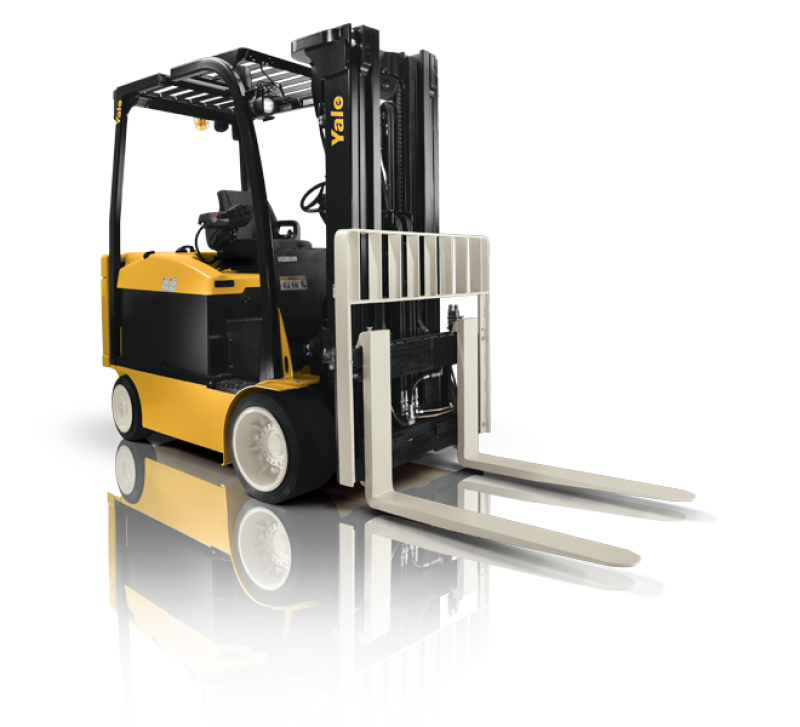

Powered by a 36-, 48- or 80- volt AC system, the ERC080-120VH electric lift truck is the solution for a variety of applications such as warehouse, retail and industrial distribution. Its advanced ergonomic design and extended battery life makes choosing a lift truck a little easier.

Yale® electric lift trucks must pass the same demanding 15-day environment test as our ICE trucks. Freezing temperatures. Blistering heat. 30% grades. And many other grueling indoor and outdoor conditions they will never encounter again. This ensures they deliver the strength and performance of our ICE trucks, with the lower cost of ownership and environmental benefits of an electric truck.

Features
Specifications
Downloads & Documentation
Copy Set

Features

Specifications

Capacity:
8,000 – 12,000 lbs
Max Height:
218
Max Weight:
12000 lbs
Series Title:
ERC080-120VH
Type:
Electric Four-Wheel Cushion Tire Truck
Weight:
lbs

ModelTable

Model Model Designation Load Capacity (lbs.) Maximum Travel Speed (mph) Maximum Lift Speed (ft/min)
ERC080VH 4 Wheel Electric Trucks 8000 12.7 118
ERC100VHS 4 Wheel Electric Trucks 10000 11.4 89
ERC100VH 4 Wheel Electric Trucks 10000 11.4 89
ERC120VH 4 Wheel Electric Trucks 12000 10.4 89
