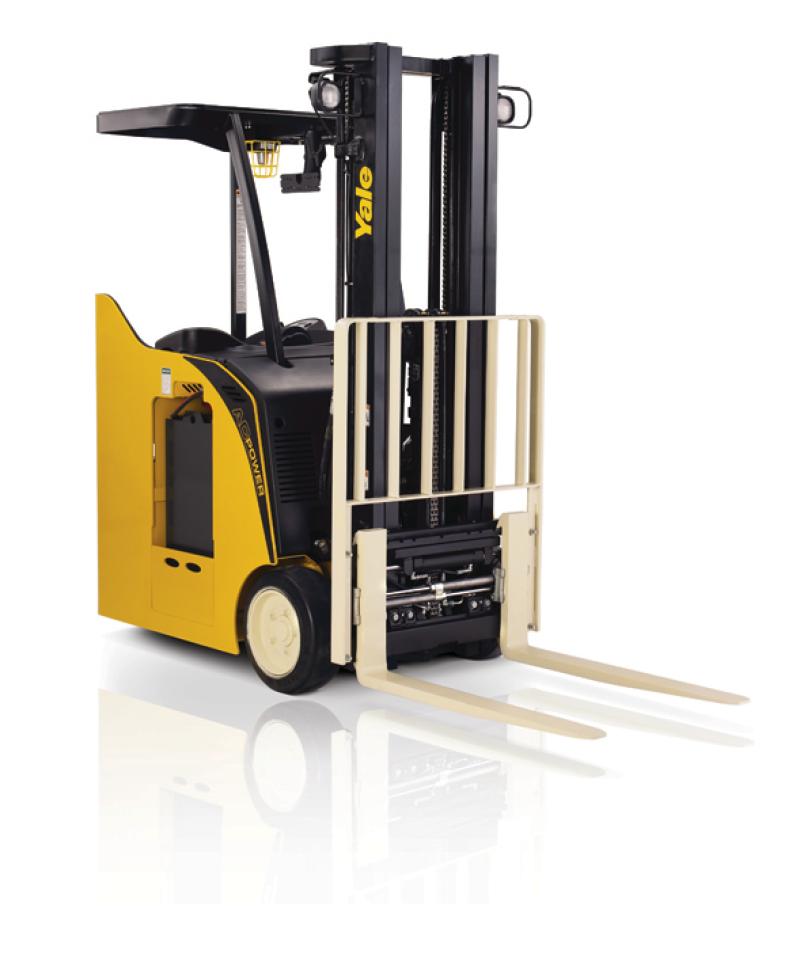

Yale ESC030-40AD

3 Wheel Electric


Need Assistance?

Let us help you find what you need.

Maneuverability + Productivity = Increased Throughput


Managing seemingly infinite SKUs, a growing operational footprint and an influx of racks can cripple operational efficiency and cause excess travel times. What if you could move products in and out of tight spaces more efficiently, enhance operator comfort and productivity and increase throughput rates?

Precisely engineered for dock and drive-in/drive-through rack application, the Yale® ESC030-040AD three-wheel stand can get you there.

Maneuverability + Productivity = Increased Throughput


Managing seemingly infinite SKUs, a growing operational footprint and an influx of racks can cripple operational efficiency and cause excess travel times. What if you could move products in and out of tight spaces more efficiently, enhance operator comfort and productivity and increase throughput rates?

Precisely engineered for dock and drive-in/drive-through rack application, the Yale® ESC030-040AD three-wheel stand can get you there.

Features
Specifications
Copy Set

Features

Dual steer tires with hydraulically actuated rack and pinion steering axle enable precise, reliable control.

Yale® Smart Operator Sensing System includes no pedals, providing with more useable floor space than leading competitors.

Standard, dual independent AC drive motors with separate drive controllers provide optimal maneuverability while turning.

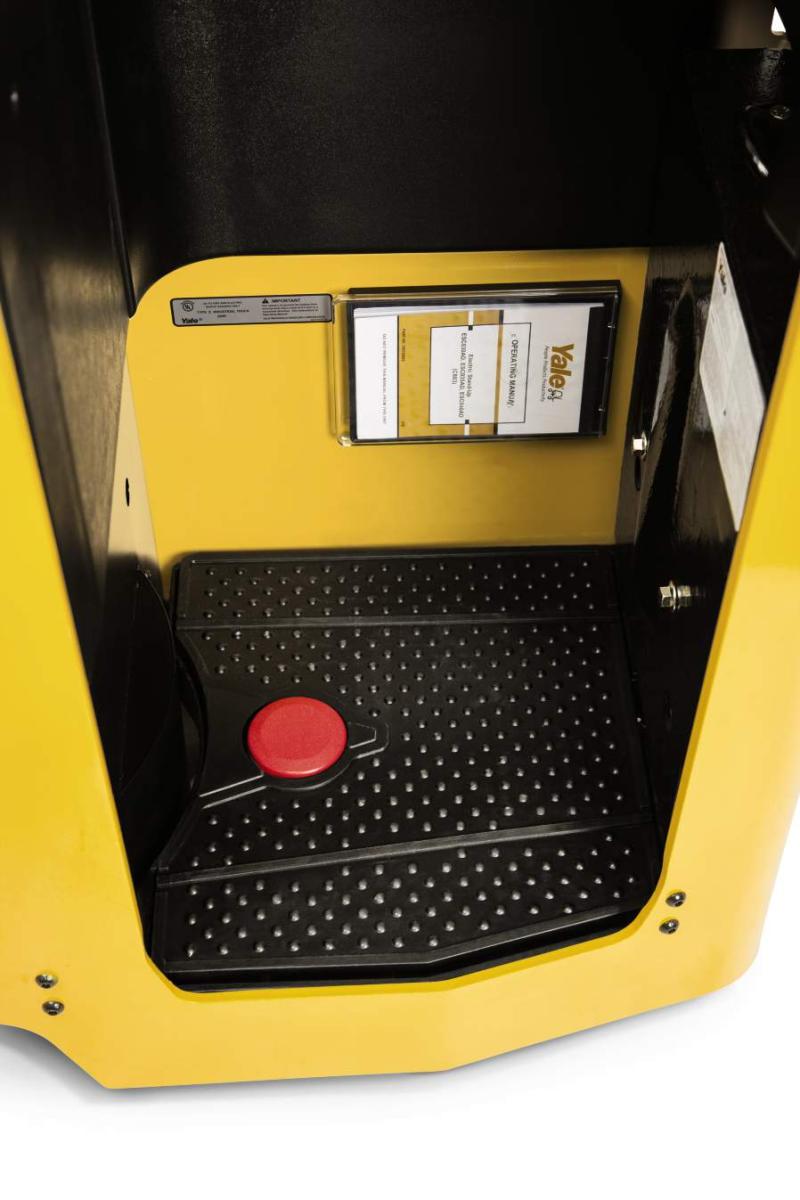

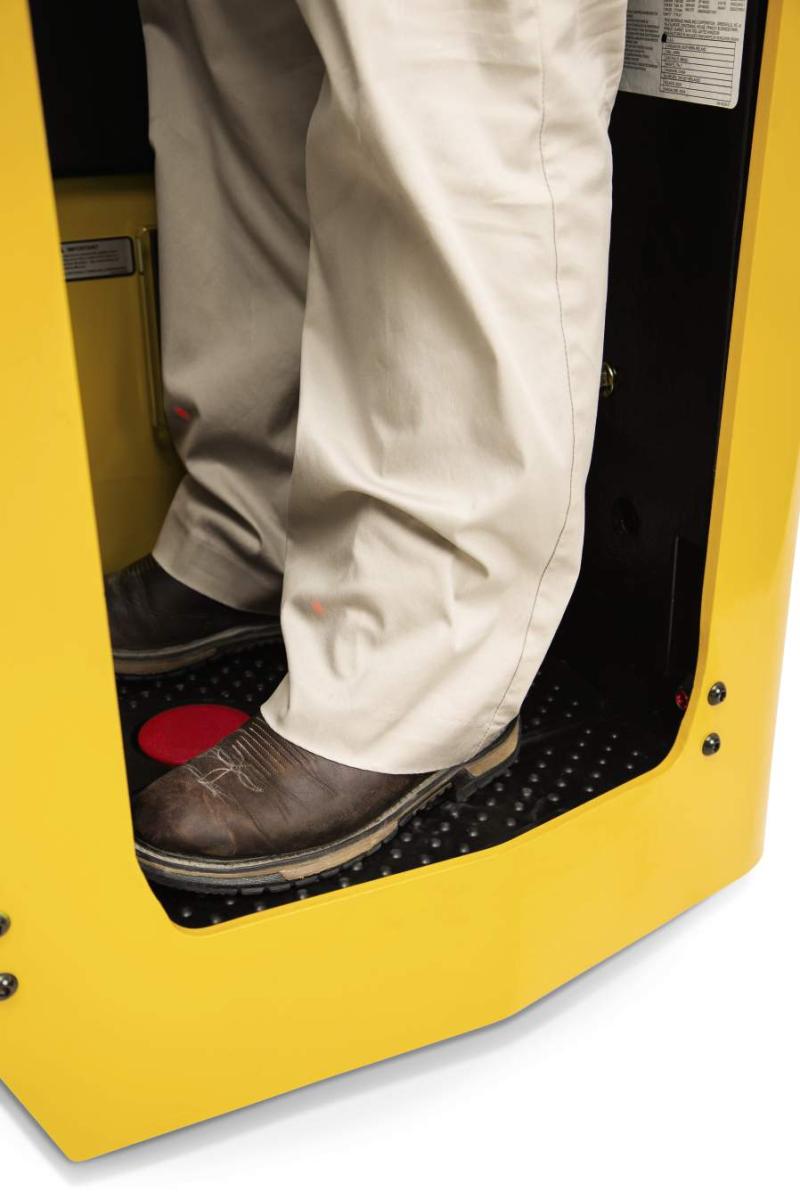

Easy on/off access, low step height and spacious suspended floor help reduce operator fatigue.

Optional Clear View™ mast offers up to 40% greater visibility than leading competitors.

Yale® Smart Operator Sensing System uses fewer moving parts than competitors, reducing the chance of component failure.

Yale® Smart Ride Floor System eliminates up to 65% of shock and vibration transmitted to the operator.

Yale iSi Technology™ provides common diagnostics with other Yale® trucks for simpler service.

Multifunction control handle provides simultaneous control of travel and hydraulic functions.

Electrical system with CANbus communications reduces connections and complex wiring.

Brushless, maintenance-free AC traction and hydraulic motors offer reduced maintenance requirements.

Specifications

Capacity:
3,000 - 4,000 lbs
Max Height:
283
Max Weight:
4000 lbs
Series Title:
ESC030-40AD
Type:
Three-Wheel Stand
Weight:
lbs

ModelTable

Model Model Designation Load Capacity (lbs.) Maximum Travel Speed (mph) Maximum Lift Speed (ft/min)
ESC030AD 3 Wheel Electric Trucks 3000 7.2 69
ESC035AD 3 Wheel Electric Trucks 3500 7.2 67
ESC040AD 3 Wheel Electric Trucks 4000 7.2 63
