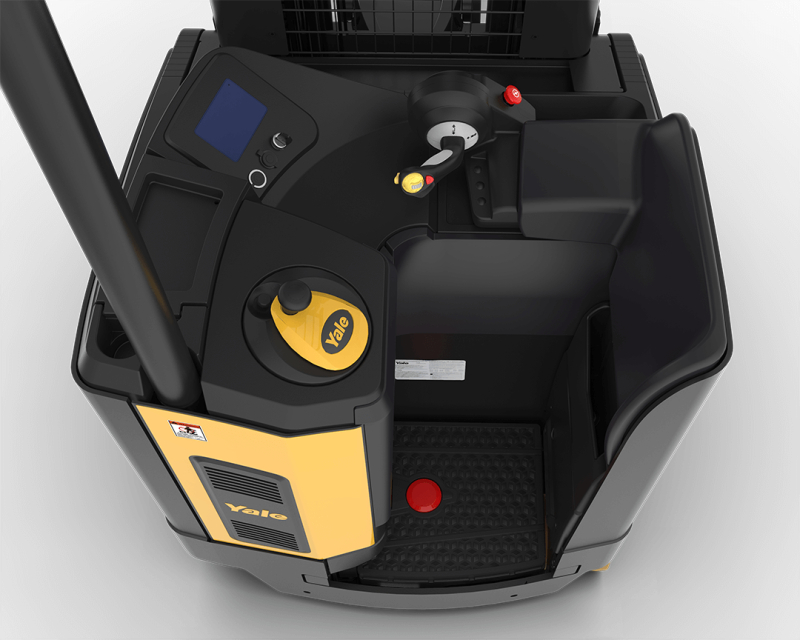

Patented, industry exclusive operator sensing system features a pedal-free design allowing operators freedom to adjust stance
Industry exclusive, forward stance with aft travel control handle and automotive steering provides natural steering familiarity in both directions
Optional fork laser level line
Shave seconds with industry-leading lift/lower cycle times
Get more out of a single battery charge by using up to 20% less energy*
Optional, industry exclusive Yale® Smart Ride suspended floor system helps reduce up to 60% of shock and vibration compared to conventional mat
A raised overhead guard increases operator head clearance and helps improve line of sight at the 2nd and 3rd pick positions
Access the motor and control compartments without the need for tools
Optional wireless camera with built in LED lights
Up to 1,000lb more capacity to height than previous model
Help increase productivity by as much as 7% per truck, per shift by moving at least one pallet more per hour than the leading competitor*
Set and adjust mast rollers within minutes without shims, gauges or disassembly
Save up to $2500** per truck, per year in scheduled maintenance costs compared to the competition
Disassemble the pantograph in 4 steps without removing the carriage, saving up to 45 minutes per truck compared to leading competitors*
Introducing a new multifunction, touch screen display

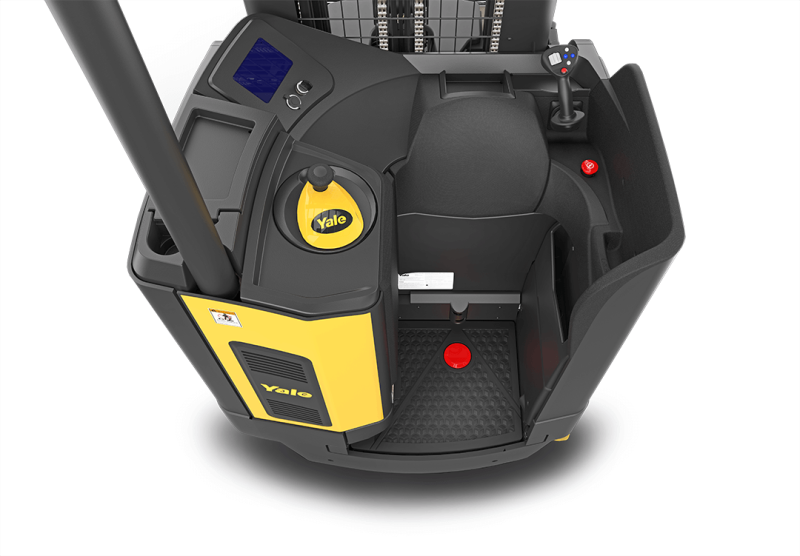

Unlike competitors, an adjustable steer tiller, armrest and backrest are standard features on the side stance model

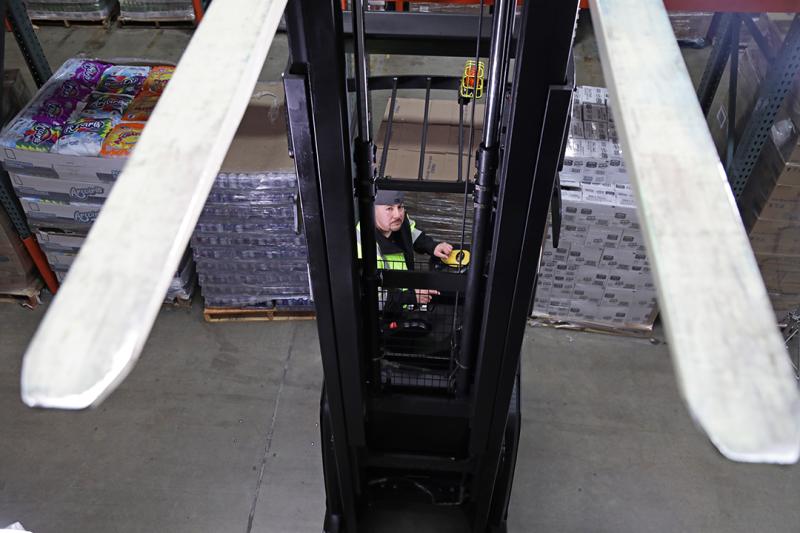

A redesigned mast combined with innovative design features such as frame profile, notched load backrest and lowered reach mechanism creates best-in-class forward visibility
Two operator compartment options (side stance and forward stance)
Capacity: |
3,000 - 4,500 lbs |
Max Height: |
422 |
Max Weight: |
4000 lbs |
Series Title: |
NR/NDR-DC/EC |
Type: |
Yale Narrow Aisle Reach Trucks |
Weight: |
lbs |
Model | Load Capacity (lbs.) | Battery | Maximum Travel Speed (mph) | Maximum Lift Speed (ft/min) | Lower Lift Speed (ft/min) |
---|---|---|---|---|---|
NDR030DC | 3000 | 24/36 | 6.5 | 66/77 | 85 |
NR035DC | 3500 | 24/36 | 6.5 | 66/77 | 85 |
NR040DC | 4000 | 24/36 | 6.5 | 66/77 | 85 |
NDR030EC | 3000 | 36 | 7.5 | 150 | 110/140† |
NDR035EC | 3500 | 36 | 8 | 175 | 140/160‡ |
NR035EC | 3500 | 36 | 7.5 | 130 | 110 |
NR040EC | 4000 | 36 | 7.5 | 150 | 110/140† |
NR045EC | 4500 | 36 | 8 | 175 | 140/160‡ |
